Our cutting-edge, high-frequency pulsed laser offers superior cutting performance.
Our machine is capable of handling a wide range of materials, including metals and non-metals.
We use high-precision DC servo motors and ultra-fine 0.1μm optical encoders for unparalleled accuracy.
Our laser cutting machine features automatic focus-following functionality and dynamic piercing control.
Our machine incorporates a premium CCD camera system for real-time visual monitoring, pattern recognition, and mark point detection.
Our machine is equipped with a German-made, high-stability power source. We use a Taiwanese brand power supply for the optical components.
Our laser cutting machine can process materials up to 19mm in thickness, catering to a wide array of industrial applications.
Our laser cutting machine is perfect for high-precision industrial applications.
Our machine is designed with a user-friendly interface for easy operation.
Precise cutting ensures minimal material waste, making our machine an eco-friendly option.
Our machine can cater to both small-scale and large-volume production runs.
Our machine has low maintenance requirements, ensuring long-term reliability.
This advanced laser cutting system offers a versatile solution for a wide range of industries, providing high-precision, efficient, and eco-friendly processing of various glass and optical materials. Its ability to handle complex shapes and delicate materials makes it an ideal choice for both large-scale manufacturing and specialized, high-value applications.

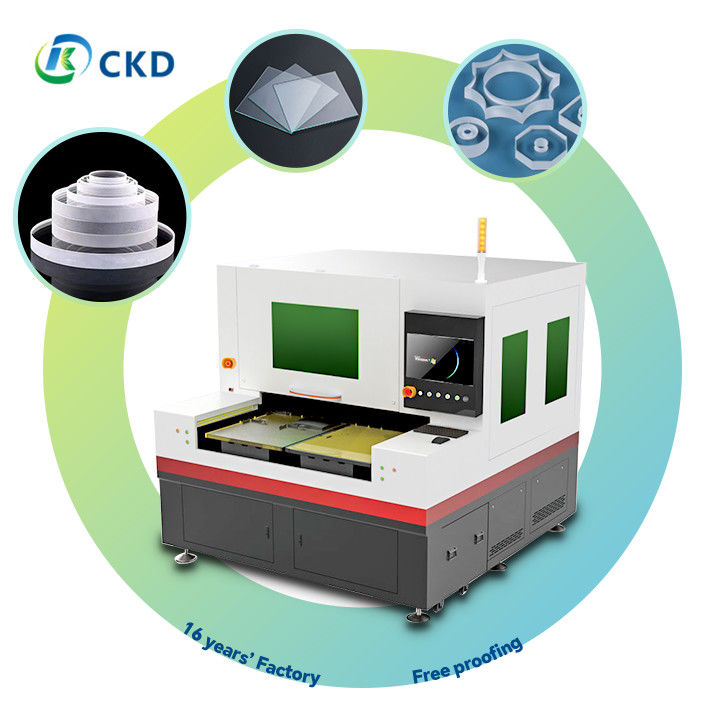

The following technical parameters describe our advanced laser cutting systems, which come in three different models: dual-platform ultrashort pulse laser cutting machine, dual-platform picosecond laser cutting machine, and single-platform picosecond laser cutting machine. Below is a table with the model numbers for each of these options.
| Parameter | Dual-platform Ultrashort Pulse Laser Cutting Machine | Dual-platform Picosecond Laser Cutting Machine | Single-platform Picosecond Laser Cutting Machine |
|---|---|---|---|
| Model Number | HT-1PG-6070GD/6090GD | HT-1PG-4050D/6070D/6090D | HT-1PG-4050/6070/6090 |
Our laser cutting systems are equipped with ultrashort pulse fiber lasers, with specific types varying depending on the model. The lasers have an average power of 50W, although options for 10W, 20W, 30W, 60W, and 80W are also available. The wavelength is 1064nm, with a second harmonic at 532nm, and the pulse width is less than 10ps (picoseconds). The repetition rate is adjustable from 1Hz to 1000kHz, and the beam quality is M² < 1.2, which produces a near-diffraction-limited beam.
Third Paragraph:Our laser cutting systems offer high precision, with a positioning accuracy of ±2μm over the entire work area and repeatability of ±1.5μm, with ±16 arc-seconds angular accuracy. The maximum cutting speed is up to 1000mm/s, and the cutting thickness varies depending on the material properties and cutting requirements. For ultra-thin glass, the cutting thickness is ≤1mm, while for standard glass, the thickness is ≤19mm. The minimum line width is ≤30μm (material dependent), and the minimum hole diameter is ≤20μm.
Fourth Paragraph:Our dual-platform models come in three different work area dimensions per platform: 600x700mm, 600x900mm, or 400x500mm. The single-platform model also comes in three different work area dimensions: 400x500mm, 600x700mm, or 600x900mm.
Fifth Paragraph:Our laser cutting systems consume 150W of power (250W/350W standby) and require an input voltage of AC220V ± 10% with a frequency ranging from 50-60Hz.
Sixth Paragraph:Our laser cutting systems vary in size and weight depending on the model. The length ranges from 1600mm to 2550mm, the width ranges from 1700mm to 2080mm, and the height is always 1960mm. The weight varies from 3500kg to 5000kg.
Seventh Paragraph:Our laser cutting systems come equipped with a built-in water cooling system for thermal stability, as well as an advanced CNC control system with high-speed processing capabilities. Additionally, we provide proprietary cutting optimization software and Class 1 laser safety enclosure with emergency stop buttons for safety measures.
Eighth Paragraph:Our laser cutting systems operate best at an operating temperature range of 18-28°C (64-82°F) and humidity within 40-70% non-condensing. The power stability should remain at ±5% maximum fluctuation.
Ninth Paragraph:We offer optional upgrades to our laser cutting systems, including an enhanced vision system for automatic alignment, an automated material loading/unloading system, custom fixture designs for specific applications, and extended warranty and service packages. Please consult with our technical team for more information on customization.
Note: Specifications may vary slightly based on specific configurations and continuous product improvements. Please consult with our technical team for the most up-to-date information and customization options.Our advanced laser cutting machine is designed to meet a wide range of industrial needs, offering precision and efficiency across various materials and applications:
Our laser cutting machine offers precision cutting for various types of glass, including:
Our laser cutting machine offers precise cutting and shaping of various gemstones and precious materials, including:
Our laser cutting machine is capable of processing various LCD components, including:
Ensuring precise cutting without damaging delicate display materials.
Our laser cutting machine offers accurate cutting of K9 optical glass for high-quality lenses and prisms, as well as precision shaping of optical films for various industrial and scientific applications.
Our laser cutting system's versatility makes it an invaluable tool across multiple industries, from consumer electronics to advanced scientific research, ensuring high-quality results and efficient production processes.
